Core and water well drilling rigs, drill pipe, hammers, bits and adapters—organized around ground conditions, hole requirements and operating constraints.
Catalog figures describe a model envelope. Final configuration depends on formation, depth, final diameter, casing, compressor and tooling.

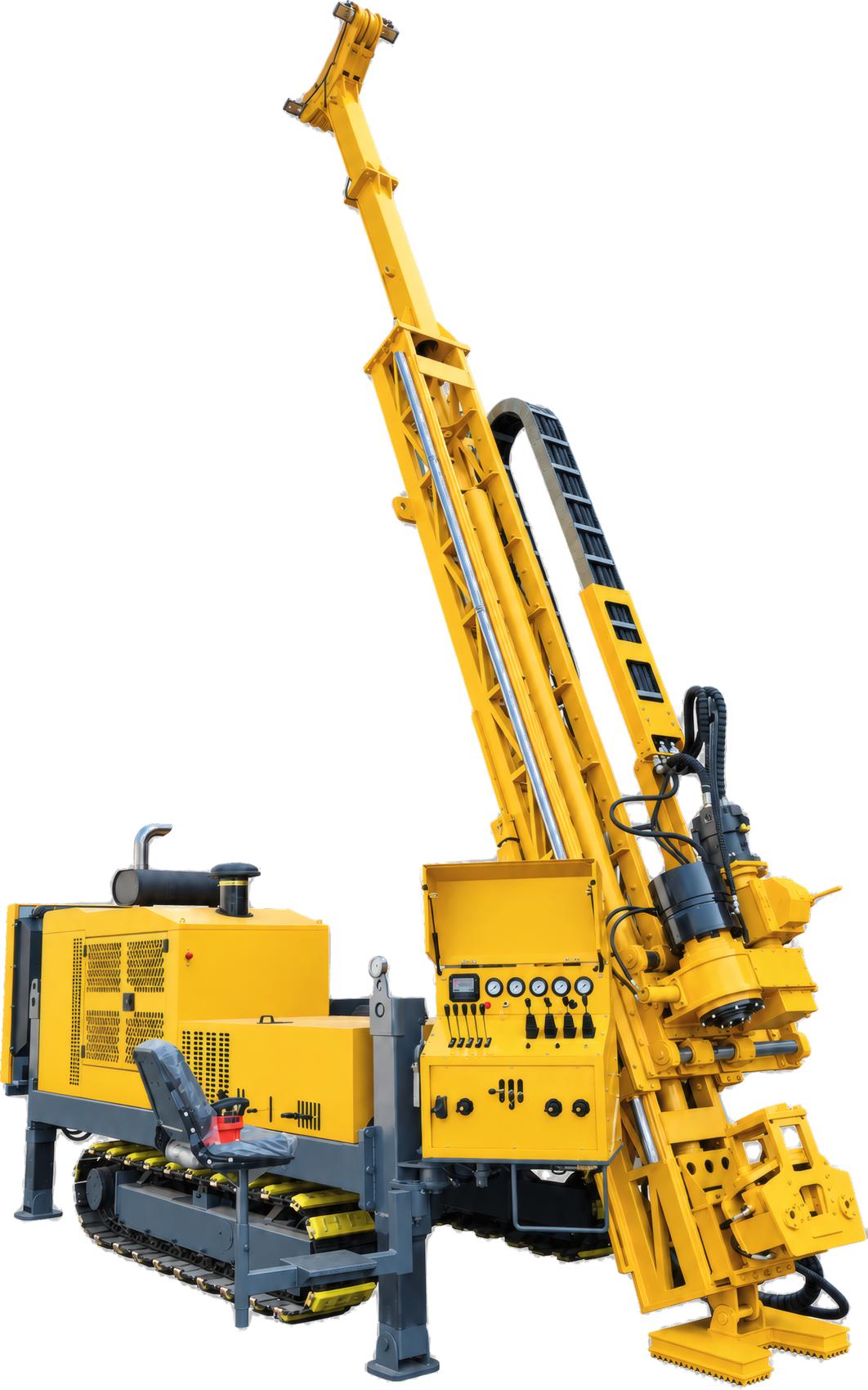

Core drilling capacity of 1600 m with NTW, 2000 m with BTW and 1200 m with HTW. Supplied by Tongshun as a trading supplier for this product.

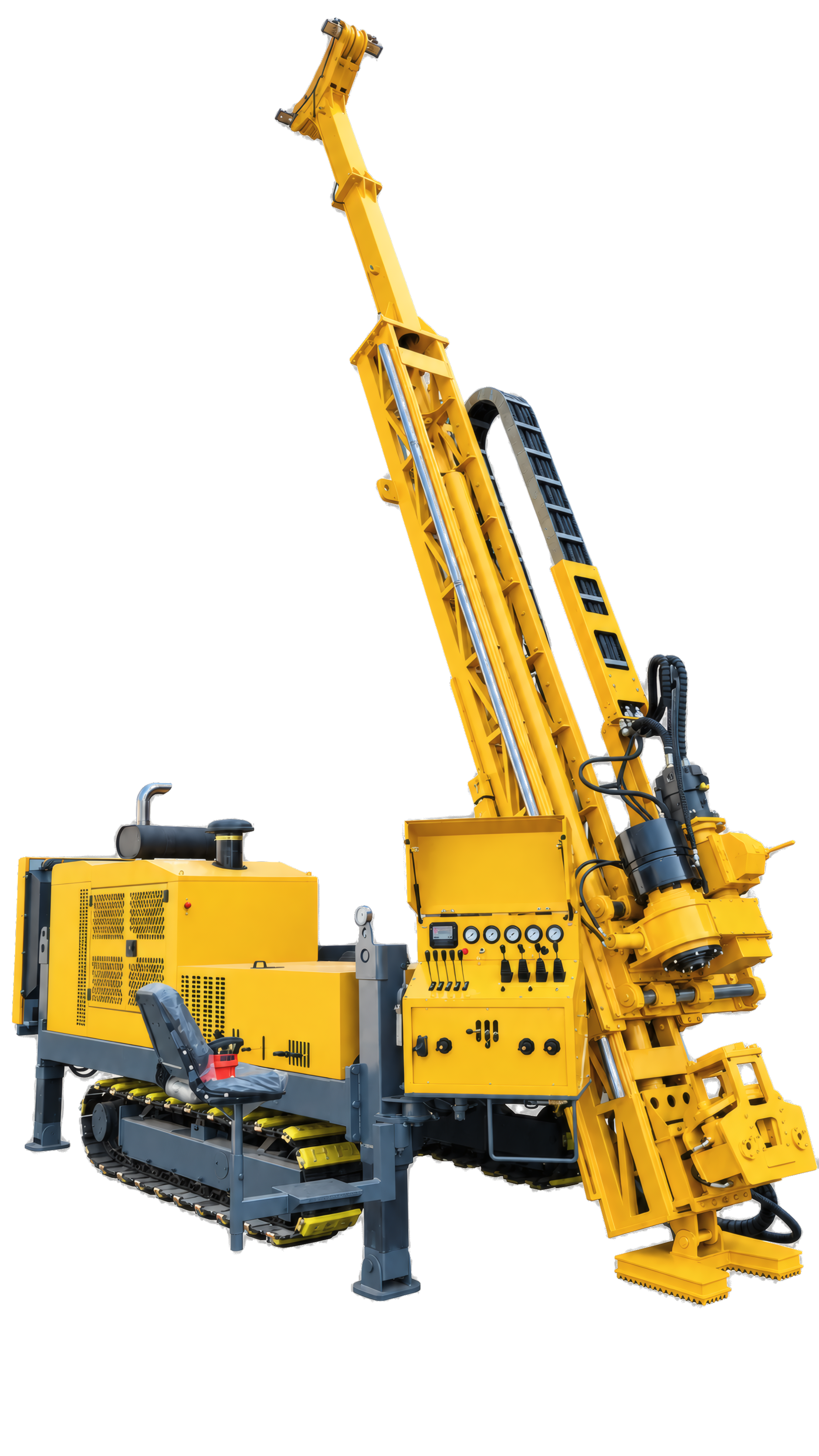

Crawler core drilling rig with 2600 m BTW, 2000 m NTW and 1600 m HTW listed capacity. Supplied by Tongshun as a trading supplier for this product.
Crawler core drilling rig with 3000 m BTW, 2600 m NTW and 2000 m HTW listed capacity. Supplied by Tongshun as a trading supplier for this product.
A compact crawler configuration for water well projects where site mobility and reduced surface impact are important selection factors.
A steel-crawler configuration for demanding access and ground conditions, supplied around the selected compressor, pipe, hammer and bit package.
Confirm outside diameter, wall, length, grade, exact pin/box thread, rig head and hammer interface before production.
Carries rotation, feed and compressed air between the rotary head and DTH hammer.
Catalog OD examples: 76–127 mmThread-connected pipe for water well drilling configurations requiring practical assembly and maintenance.
Catalog size range: 42–89 mmFriction-welded drill-pipe families with product-specific bodies, tool joints and grade options.
Catalog size range: 2 7/8–6 5/8 inMale, female and crossover components for controlled drill-string interface matching.
NC · IF · REG · FH familiesTool selection follows the method, formation, target diameter and available air or fluid system.
Bottom-hole percussion tools selected by hole size, bit shank and compressor duty.
View DetailsButton-bit configurations matched to hammer, diameter and rock conditions.
View DetailsSupporting tools for assembly, handling and the planned drilling method.
View DetailsTop, bottom and crossover interfaces specified from controlled thread information.
View DetailsSend your formation, target depth, bore diameter, casing plan and existing compressor or tooling. We will identify the interfaces that need to be confirmed next.
