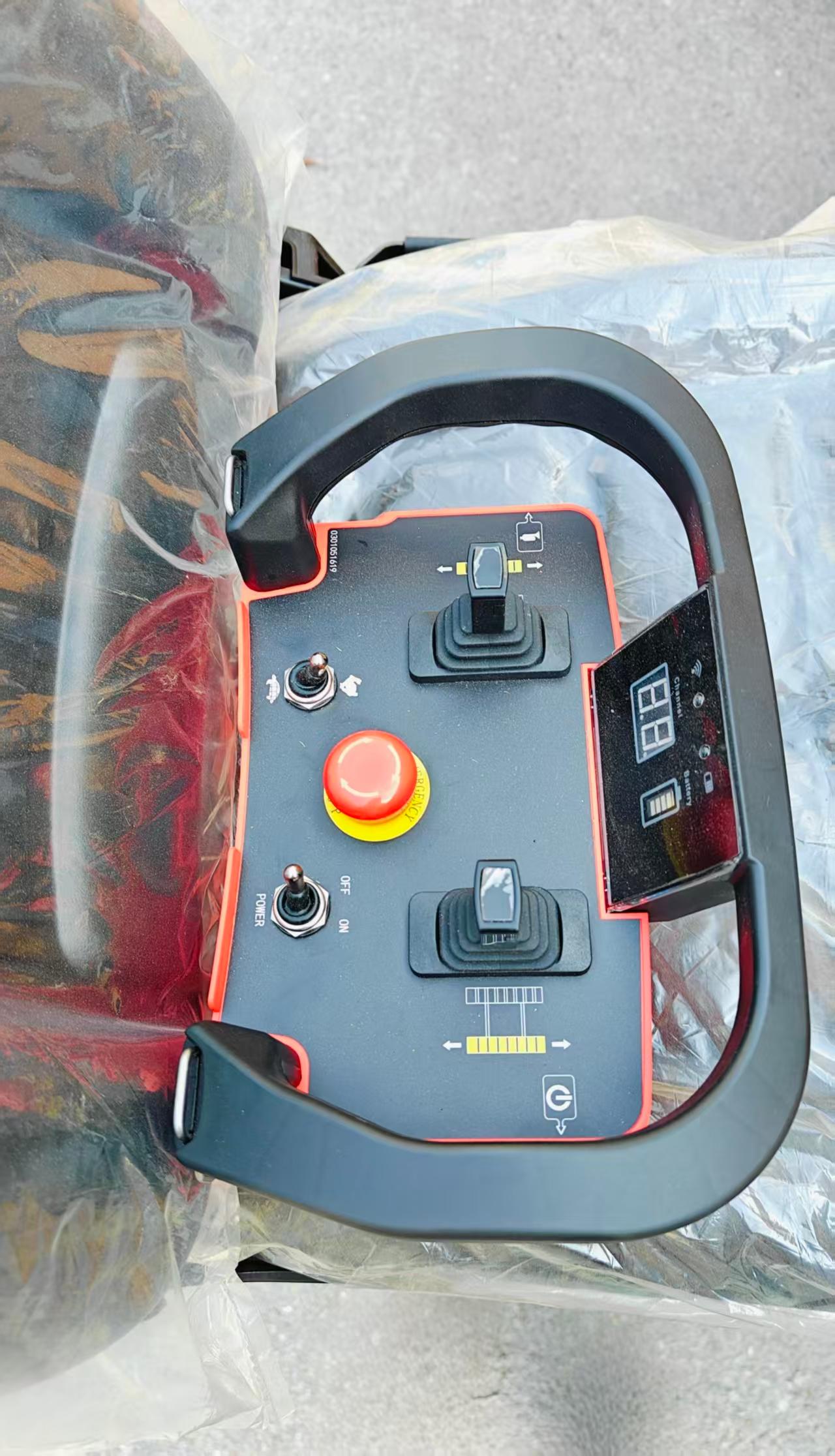

Remote-control detail from the supplied TSHC2600 source photographs.
TONGSHUN / TSHC2600
2600 m NTWCrawler Core Drilling Rig
Hydraulic crawler rig for deeper geological exploration and wireline core drilling.
BTW 3000 m | HTW 2000 m
239 kWCummins engine
12000 N·mMax torque
35 TPowerhead lifting force
45°–90°Drilling angle
01 / TECHNICAL DATA
Capacity with the drill string specified.
BTW3000 m
NTW2600 m
HTW2000 m
Depth ratings refer to the stated drill string size. Actual performance depends on site conditions.
| Hydraulic cooling method | Air cooling |
|---|---|
| Engine brand | Cummins |
| Engine rated power | 239 kW |
| Engine rated speed | 2200 rpm |
| Powerhead max. torque | 12000 N·m |
| Powerhead max. rotation speed | 1200 rpm |
| Feed stroke | 3.6 m |
| Powerhead lifting force | 35 T |
| Powerhead feed force | 18 T |
| Wireline winch rope capacity | 2500 m |
| Wireline winch lifting force | 25 kN |
| Wireline hoisting speed (empty / full drum) | 80 / 150 m/min |
| Wireline rope diameter | 8 mm |
| Auxiliary winch rope capacity | 30 m |
| Auxiliary winch lifting force | 140 kN |
| Auxiliary winch rope diameter | 16 mm |
| Overall height | 8.7 m |
| Drilling angle | 45°–90° |
| Compensation stroke | 1200 mm |
| Clamp through-hole (optional) | Ø127 mm |
| Gradeability | 30° |
| Track type | Steel track |
| Travel speed (low / high) | 3 / 6 km/h |
| Mud pump | BW250 |
| Working dimensions | 6500 × 2250 × 8700 mm |
| Transport dimensions | 7300 × 2250 × 3100 mm |
| Total weight | 13.5 T |
02 / PRODUCT DETAILS
Real component photographs for configuration review.
Cylinder and hydraulic lines

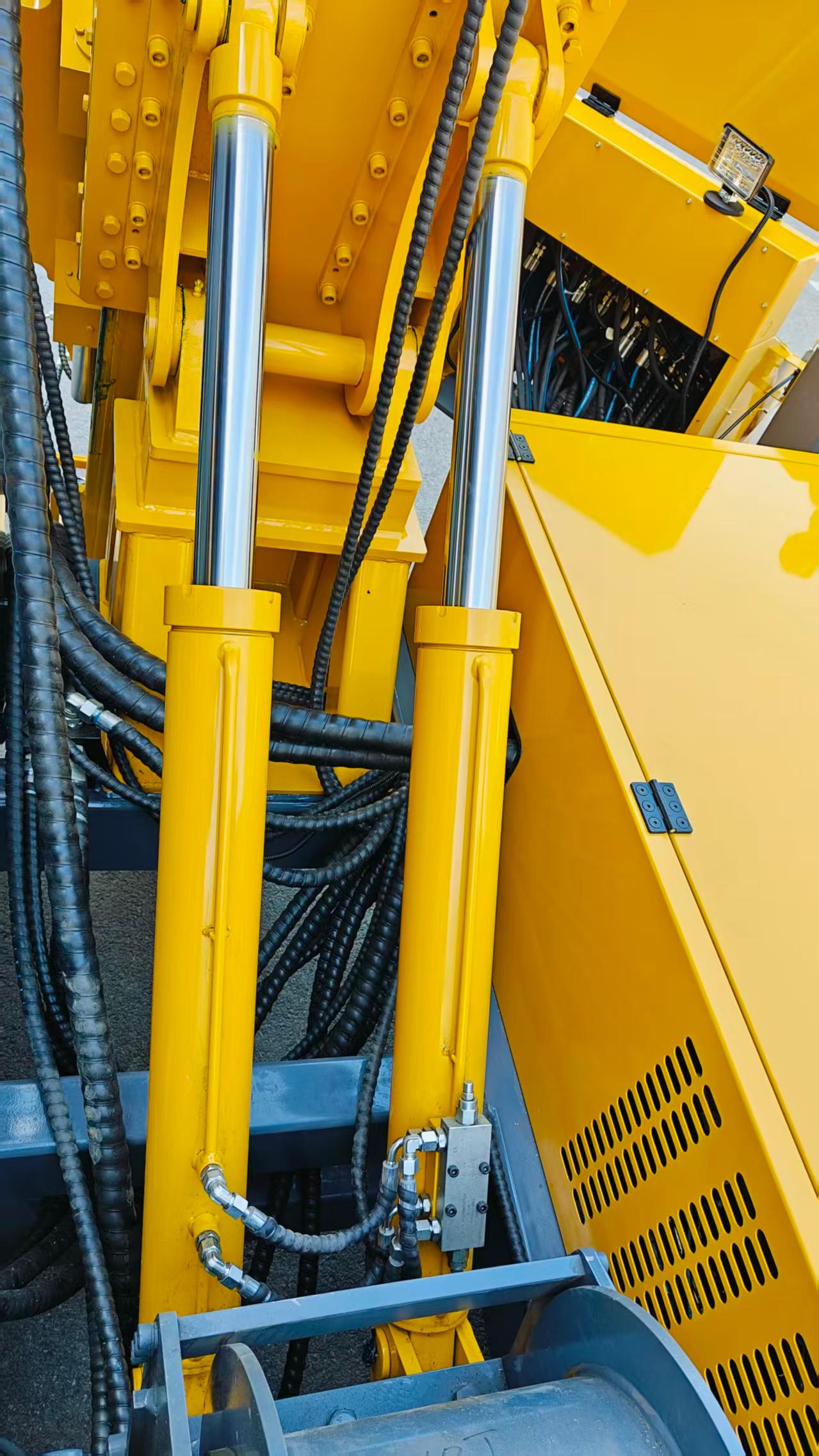

Cylinder and line routing detail for installation review.
Operator console

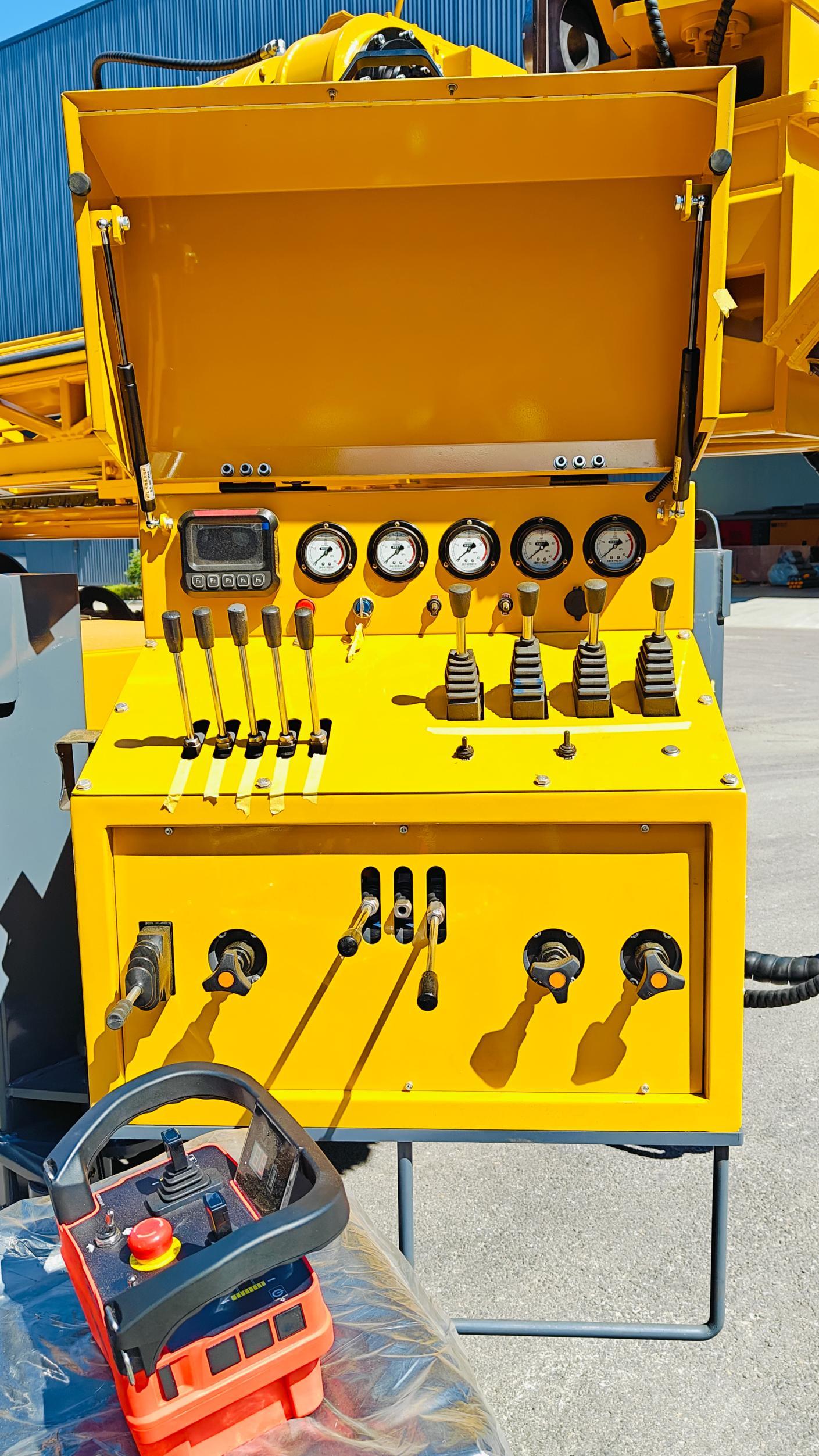

Operator console detail from the supplied product detail set.
Safety guard

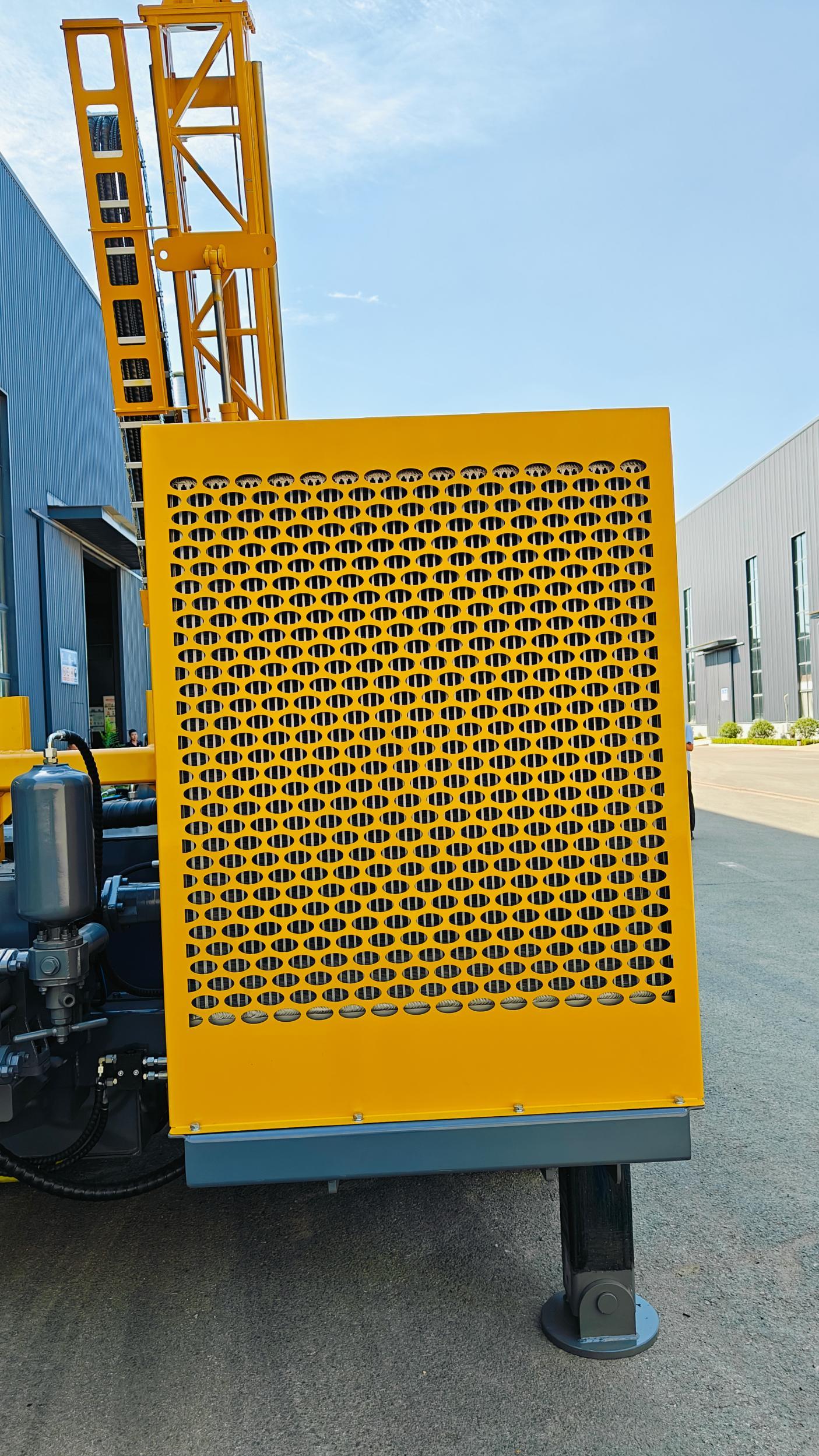

Protective guard detail for site and maintenance planning.
Hydraulic valve group

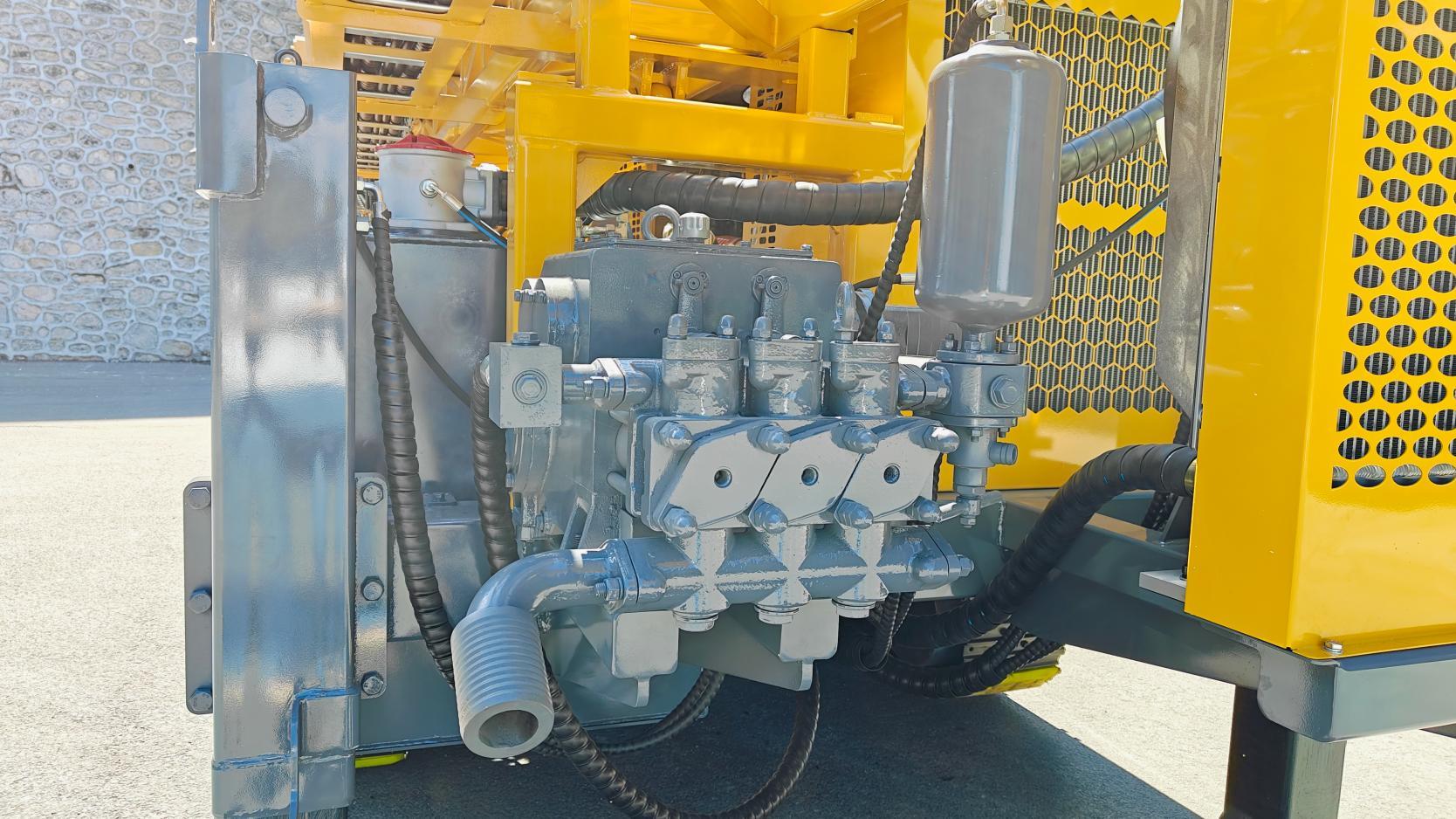

Hydraulic valve group detail for configuration discussion.
Winch drum assembly

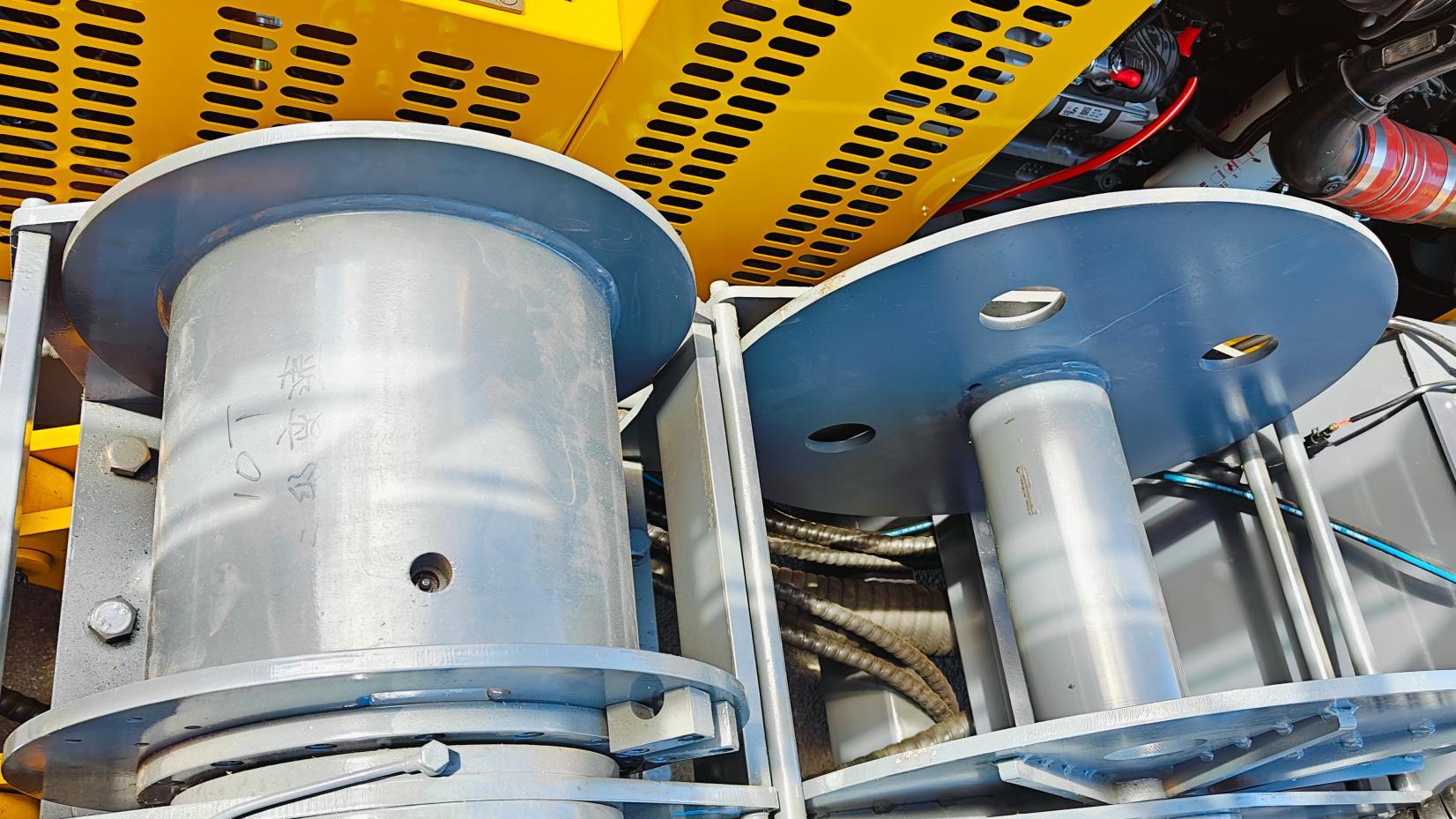

Winch drum detail corresponding to the listed wireline capacity.
03 / PROJECT MATCHING
Specify your drilling requirement.
Select the drill string size before comparing drilling capacity.
- Drill string and depth
- BTW: 3000 m. NTW: 2600 m. HTW: 2000 m. Confirm drill string size, target depth and formation.
- Site access and transportation
- Transport dimensions: 7300 × 2250 × 3100 mm. Listed total weight: 13.5 T. Confirm access and transport arrangements.
- Configuration
- Feed stroke: 3.6 m. Mud pump: BW250. The Ø127 mm clamp through-hole is listed as optional; confirm the selected configuration.
04 / PURCHASING
A clear purchase specification.
Tongshun acts as a trading supplier for this core drilling rig.
Share your requirements
Tell us the target depth, drill string size, site conditions and destination.
Confirm the configuration
Review the selected rig configuration, included items and optional equipment.
Review the quotation
Confirm price, payment terms, lead time and the scope of after-sales arrangements.
Agree on delivery details
Confirm packing, shipping terms and required documents before order placement.
05 / COMMON QUESTIONS
Before you order.
What does 2600 m refer to?
The NTW drilling capacity is 2600 m. BTW capacity is 3000 m and HTW capacity is 2000 m. Performance depends on the drill string and operating conditions.
Which engine and rotary head are specified?
Cummins engine: 239 kW at 2200 rpm. Powerhead maximum torque: 12000 N·m; maximum rotation speed: 1200 rpm. These are separate maximum ratings.
What is the wireline winch capacity?
The wireline winch capacity is listed as 2500 m with an 8 mm wire rope. Wireline lifting force is 25 kN.
What should be confirmed before ordering?
Confirm the selected configuration, accessories, price, payment terms, lead time, packing, shipping and after-sales scope in writing.
06 / REQUEST A QUOTATION
Start with your drilling requirements.
Include TSHC2600, drill string size, target depth, site conditions and destination in your inquiry.
