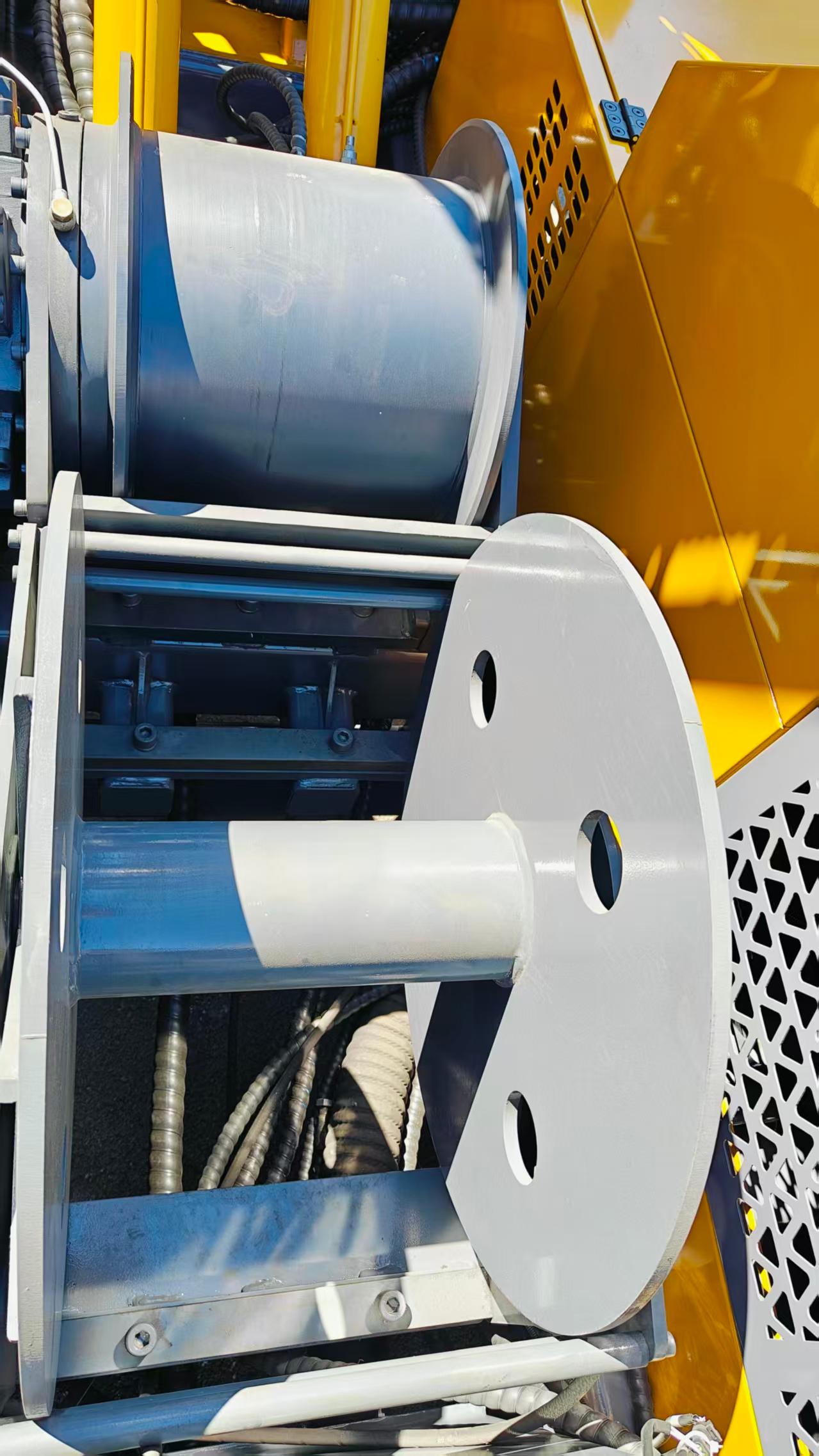

Winch and wire rope
Winch and rope detail from the supplied TSHC2000 source photographs.
TONGSHUN / TSHC2000
2000 m NTWCrawler Core Drilling Rig
Hydraulic crawler rig for geological exploration and wireline core drilling.
BTW 2600 m | HTW 1600 m
194 kWCummins engine
10000 N·mMax torque
30 TPowerhead lifting force
45°–90°Drilling angle
01 / TECHNICAL DATA
Capacity with the drill string specified.
BTW2600 m
NTW2000 m
HTW1600 m
Depth ratings refer to the stated drill string size. Actual performance depends on site conditions.
| Hydraulic cooling method | Air cooling |
|---|---|
| Engine brand | Cummins |
| Engine rated power | 194 kW |
| Engine rated speed | 2200 rpm |
| Powerhead max. torque | 10000 N·m |
| Powerhead max. rotation speed | 1200 rpm |
| Feed stroke | 3.6 m |
| Powerhead lifting force | 30 T |
| Powerhead feed force | 15 T |
| Wireline capacity (Ø6 mm rope) | 3000 m |
| Wireline capacity (Ø8 mm rope) | 2500 m |
| Wireline winch lifting force | 20 kN |
| Wireline hoisting speed (empty / full drum) | 80 / 150 m/min |
| Wireline rope diameter | 6 / 8 mm |
| Auxiliary winch rope capacity | 30 m |
| Auxiliary winch lifting force | 140 kN |
| Auxiliary winch rope diameter | 20 mm |
| Overall height | 8.7 m |
| Drilling angle | 45°–90° |
| Compensation stroke | 1200 mm |
| Clamp through-hole (optional) | Ø127 mm |
| Gradeability | 30° |
| Track type | Steel track |
| Travel speed (low / high) | 3 / 6 km/h |
| Mud pump | BW250 |
| Working dimensions | 6500 × 2250 × 8700 mm |
| Transport dimensions | 7300 × 2250 × 3100 mm |
| Total weight | 12.8 T |
02 / PRODUCT DETAILS
Real component photographs for configuration review.

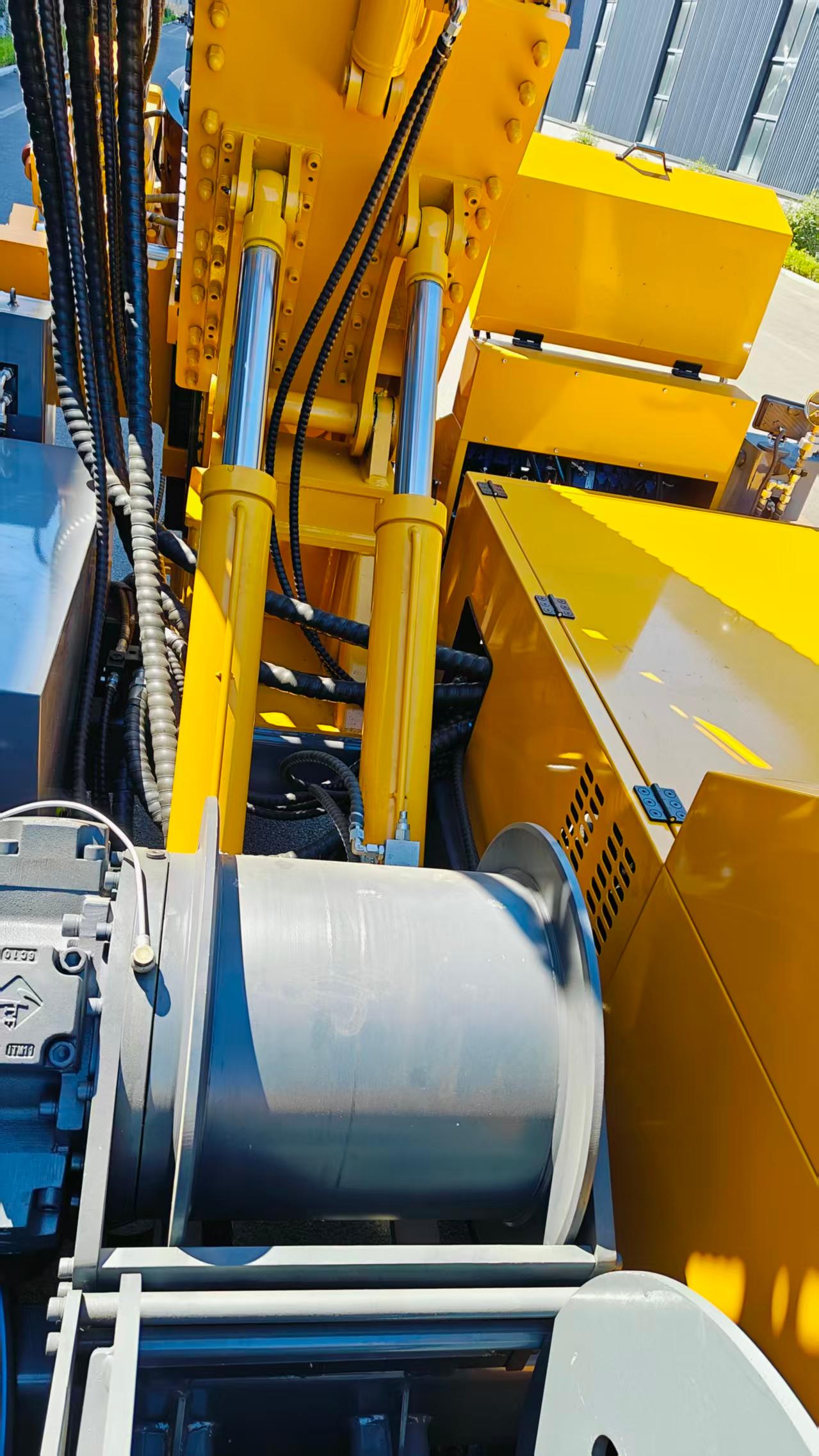

Mast and winch assembly
Mast-side components shown in the supplied product detail set.

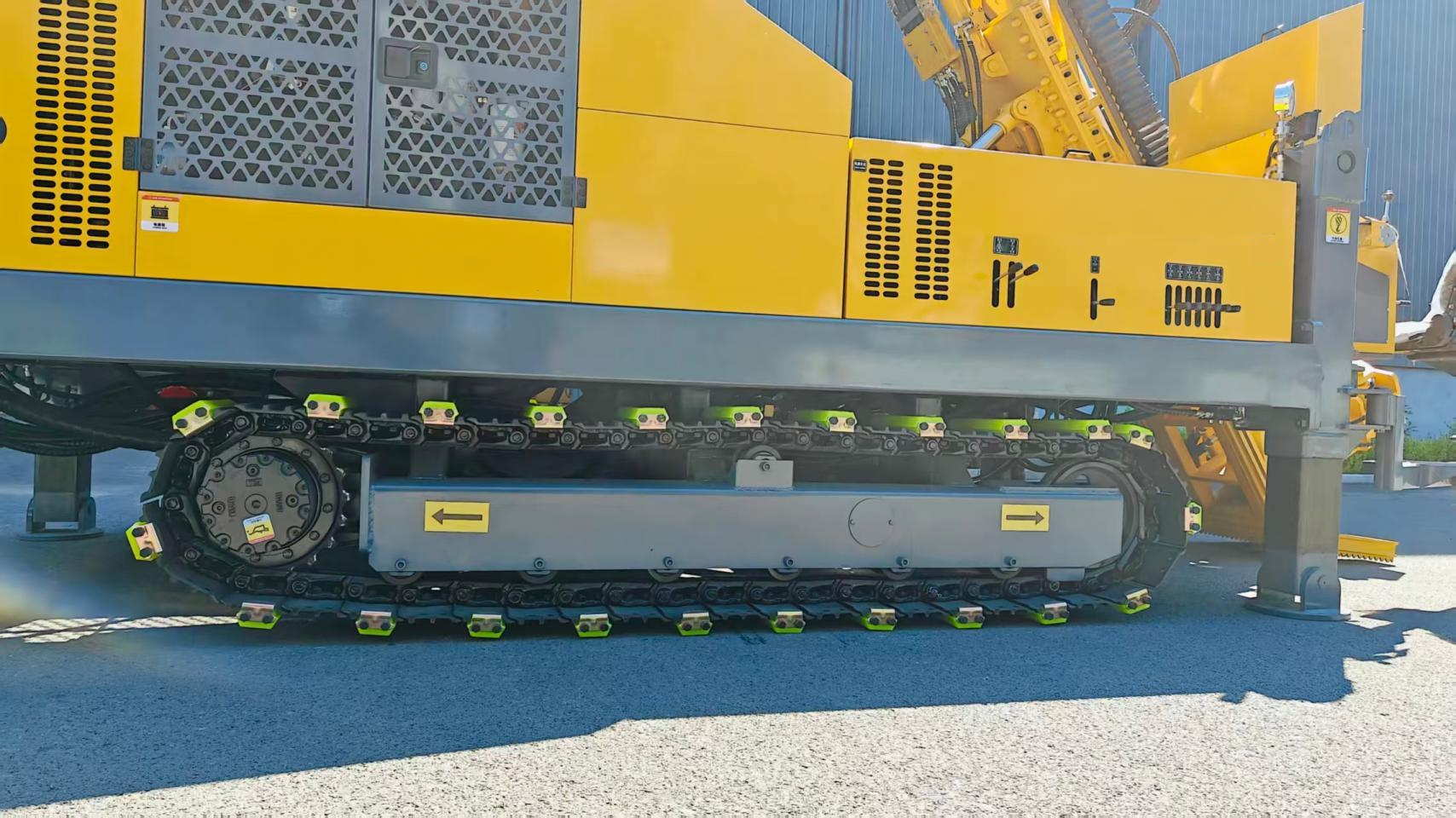

Steel crawler undercarriage
Crawler undercarriage detail for site access review.

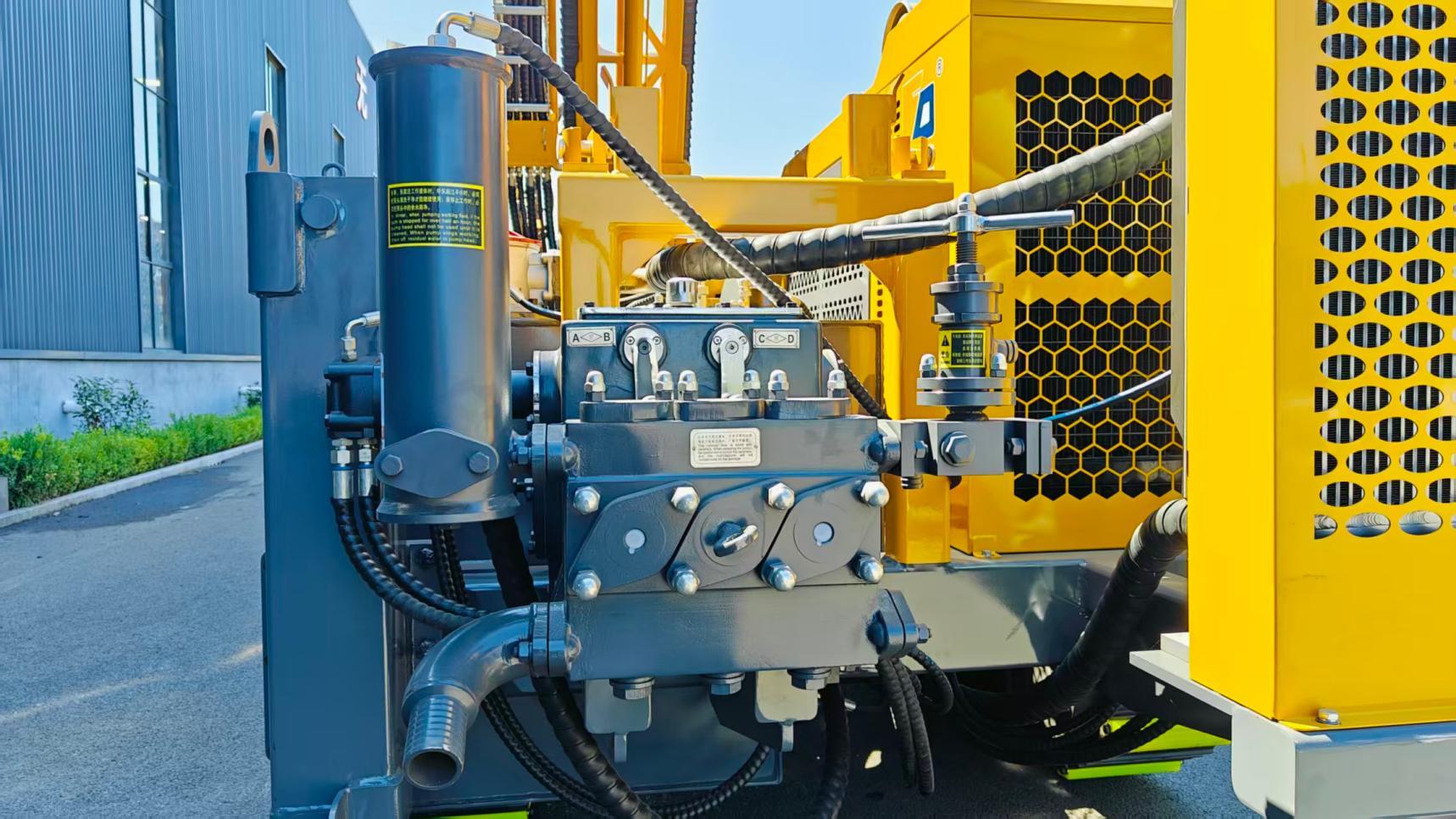

Hydraulic valve group
Hydraulic valve group detail for configuration discussion.

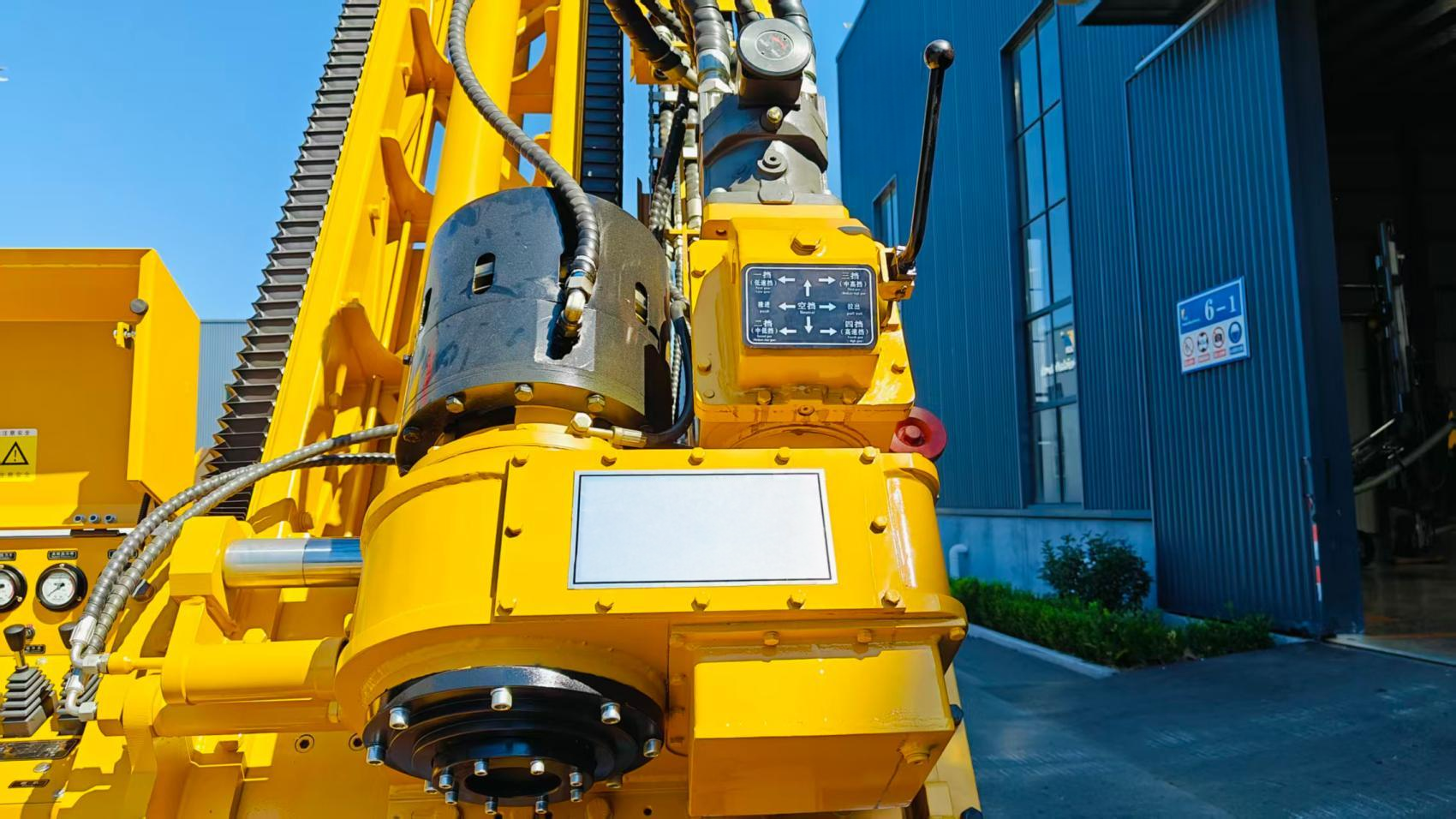

Powerhead
Powerhead detail corresponding to the listed torque and rotation ratings.

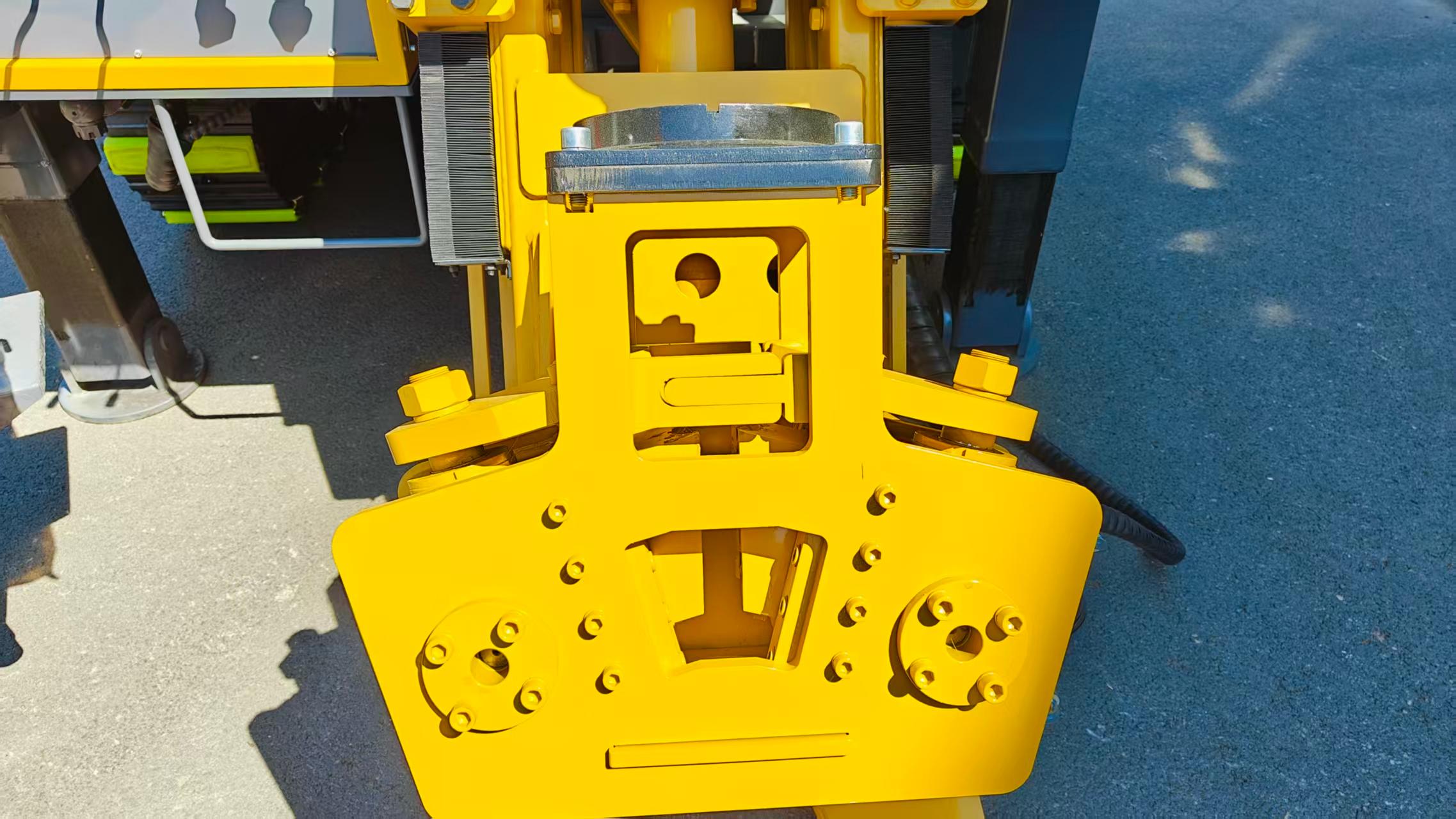

Clamp
Clamp detail; confirm the optional through-hole in the quotation.
03 / PROJECT MATCHING
Specify your drilling requirement.
Select the drill string size before comparing drilling capacity.
- Drill string and depth
- BTW: 2600 m. NTW: 2000 m. HTW: 1600 m. Confirm drill string size, target depth and formation.
- Site access and transportation
- Transport dimensions: 7300 × 2250 × 3100 mm. Listed total weight: 12.8 T. Confirm access and transport arrangements.
- Configuration
- Feed stroke: 3.6 m. Mud pump: BW250. The Ø127 mm clamp through-hole is listed as optional; confirm the selected configuration.
04 / PURCHASING
A clear purchase specification.
Tongshun acts as a trading supplier for this core drilling rig.
Share your requirements
Tell us the target depth, drill string size, site conditions and destination.
Confirm the configuration
Review the selected rig configuration, included items and optional equipment.
Review the quotation
Confirm price, payment terms, lead time and the scope of after-sales arrangements.
Agree on delivery details
Confirm packing, shipping terms and required documents before order placement.
05 / COMMON QUESTIONS
Before you order.
What does 2000 m refer to?
The NTW drilling capacity is 2000 m. BTW capacity is 2600 m and HTW capacity is 1600 m. Performance depends on the drill string and operating conditions.
Which engine and rotary head are specified?
Cummins engine: 194 kW at 2200 rpm. Powerhead maximum torque: 10000 N·m; maximum rotation speed: 1200 rpm. These are separate maximum ratings.
What is the wireline winch capacity?
3000 m with Ø6 mm wire rope or 2500 m with Ø8 mm wire rope. Wireline lifting force: 20 kN.
What should be confirmed before ordering?
Confirm the selected configuration, accessories, price, payment terms, lead time, packing, shipping and after-sales scope in writing.
06 / REQUEST A QUOTATION
Start with your drilling requirements.
Include TSHC2000, drill string size, target depth, site conditions and destination in your inquiry.
