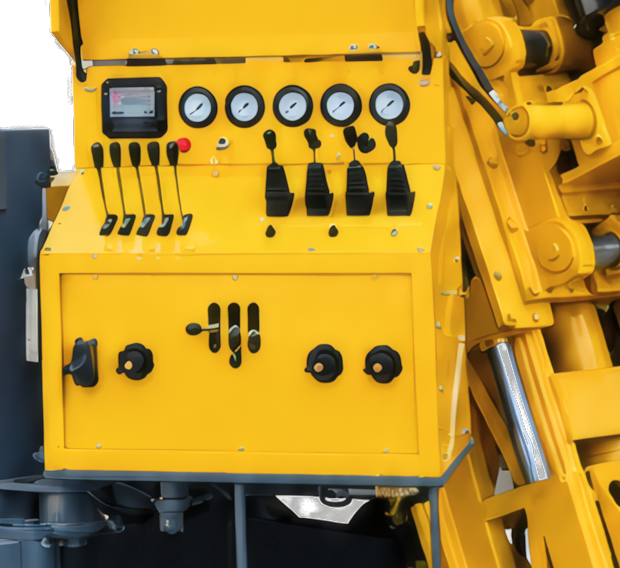

Control console
Gauges and operating levers
TONGSHUN / TSHC-1600
1600 m NTWCore Drilling Rig
Hydraulic crawler rig for geological exploration and wireline core drilling.
BTW 2000 m • HTW 1200 m
154 kWYuchai engine
3800 N·mMax torque
35 THoisting force
45°–90°Drilling angle
01 / TECHNICAL DATA
Capacity with the drill string specified.
BTW2000 m
NTW1600 m
HTW1200 m
Depth ratings refer to the stated drill string size. Actual performance depends on site conditions.
| Hydraulic Cooling System | Water + Air Cooling |
|---|---|
| Engine Brand | Yuchai |
| Rated Power | 154 kW |
| Rated Speed | 2400 rpm |
| Max Torque | 3800 N·m |
| Max Rotation Speed | 1400 rpm |
| Feed Stroke | 3.6 m (Optional) |
| Hoisting Force | 35 T |
| Feeding Force | 18 T |
| Wireline Winch Capacity | 2000 m |
| Winch Lifting Force | 28 kN |
| Wire Rope Diameter | 8 mm |
| Mast Height | 8.6 m |
| Drilling Angle | 45°–90° |
| Compensation Stroke | 1400 mm |
| Mud Pump | BW160 / BW250 |
02 / PRODUCT DETAILS
A closer look at the equipment.

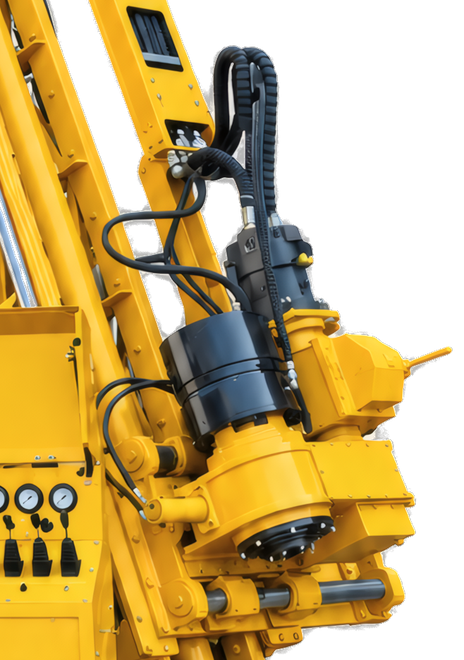

Rotary head
Drive assembly and hydraulic connections

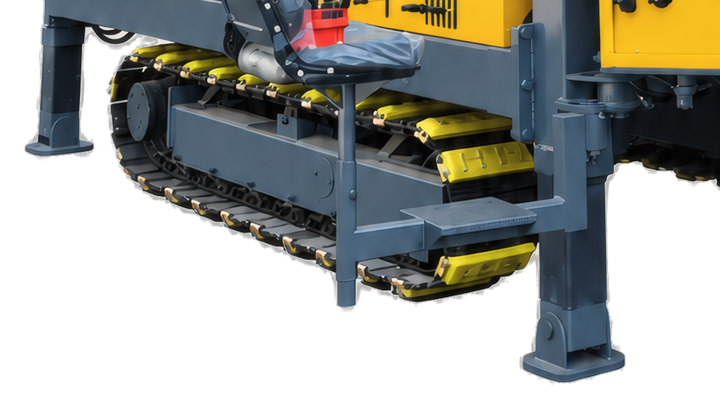

Crawler undercarriage
Tracks and support structure
03 / PROJECT MATCHING
Specify your drilling requirement.
Select the drill string size before comparing drilling capacity.
- Target depth
- Required drilling depth and drill string size
- Site conditions
- Formation, access and operating environment
- Configuration
- Required options, quantities and destination
04 / PURCHASING
A clear purchase specification.
Tongshun acts as a trading supplier for this core drilling rig.
Share your requirements
Tell us the target depth, drill string size, site conditions and destination.
Confirm the configuration
Review the selected rig configuration, included items and optional equipment.
Review the quotation
Confirm price, payment terms, lead time and the scope of after-sales arrangements.
Agree on delivery details
Confirm packing, shipping terms and required documents before order placement.
05 / COMMON QUESTIONS
Before you order.
Why is this called a 1600 m rig?
The NTW drilling capacity is 1600 m. The same specification lists 2000 m with BTW and 1200 m with HTW. Drilling capacity depends on drill string size and operating conditions.
Which engine and power are specified?
The specification lists a Yuchai engine, 154 kW rated power and 2400 rpm rated engine speed.
Which items need configuration confirmation?
The 3.6 m feed stroke is listed as optional. Mud pump options are BW160 / BW250. Confirm the selected configuration and included items in the quotation.
What should the supply scope include?
Confirm the rig configuration, accessories, spare parts and documents required for your project in the written quotation.
What are the delivery and after-sales terms?
Lead time, payment, packing, shipping and after-sales scope must be confirmed in writing for the selected configuration and destination.
06 / REQUEST A QUOTATION
Start with your drilling requirements.
Include TSHC-1600, target depth, drill string size, site conditions and destination in your inquiry.
